Aggregate Handling Belt Conveyor System for "Kurobe 4 Dam", Kansai Electric Power

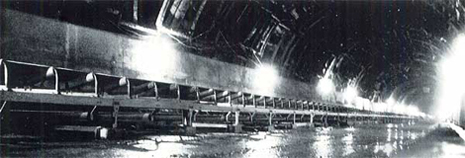

This is an aggregate transportation conveyors provided for Kurobe 4 Dam built in Japan. It becomes the cause for a success of this project to produce our long distance conveyors. This conveyor system comprises 23 conveyors with total 6.4 km having a capacity of 700 t/h. Long distance conveyors in the system have a length of No. 5 - 1,580 m and No. 5 - 1,920 m driven by two motors respectively. The conveyor system have transported total 4,500,000 ton of aggregate until dam construction completed. Now, the Kurobe 4 Dam is generating 258 MW electric power.
| client | location | facilities title | main specifications | |
| Kansai Electric Power | Kurobe 4 Dam | Belt conveyor for aggregate transportation×23 | Total length | 6.1km |
| Capacity of the belt | 700t/h | |||
| Belt width | 1600mm | |||
| Quantity of total soil | 4,500,000ｔ | |||
| material transported | Aggregate | |||
